ROLAND TD-12K
COLLECT from TW8 0JQ
cash or transfer with ID

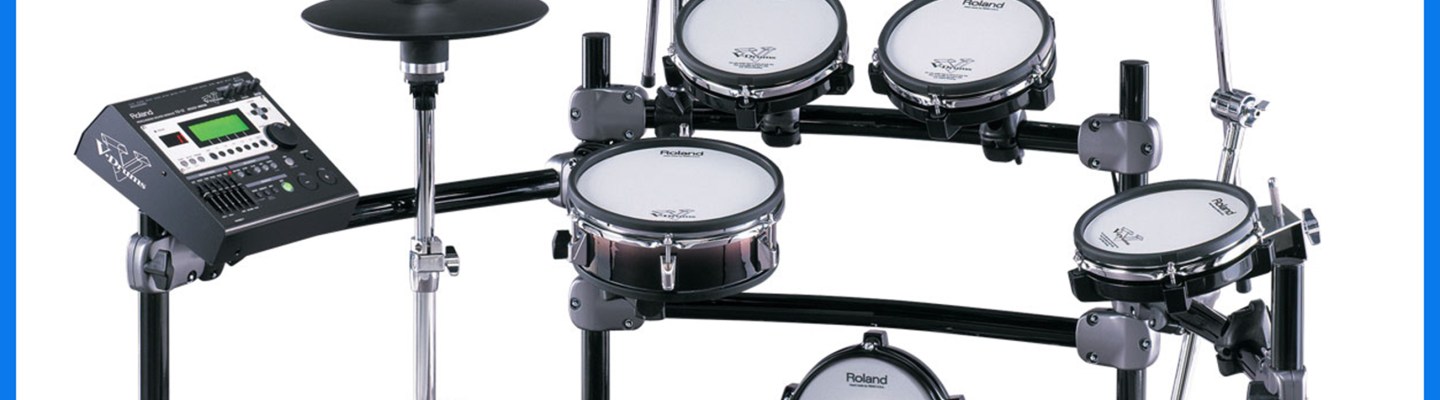

This is a full mesh TD-12 kit.
Still a fave among edrummers as it
has features missing from newer lines!
10 inch snare
3 zone ride
channel sliders
2x stereo output
mix in
kick pedal & hi hat stand can be included from stock items, various options
VH-11 moving hi hat
9 VEX PACKS!
Everything is in perfect working condition –
there are a few cosmetic marks to the frame
(this rack is known for it) – once it’s loaded with clamps
& pads it’s not a concern but just so you know.
All has been freshened up and is triggering like new.
Module is in top condition and no screen or volume issues.
Everything has been well cleaned
All pads are dismantled and trigger cones replaced as needed.
(many folks have no idea this is even a maintenance part:
they are made of foam rubber and do decay)
Everything has been fully tested
All good to go.
Latest system version on module
Nine VEX custom kits also provided
*loaded on via usb/midi interface (not included)
PARTS
1x MDS-12 drum rack w/all clamps & mounts
(integral cables inside frame)
1x TD-12 module
1x PD-105 ten inch snare pad
3x PD-85 dual zone mesh tom pads
2x CY-12R/C cymbal pads
1x VH-11 Hi hat set
1x KD-85 bass drum unit
drum key and sticks
OPTIONAL hi hat stand, kick pedal, headphones and stool can be added.
Thanks for looking
9 VEX packs
Master PIcks 1 and 2
Top 50 drummers 1 and 2
Studio 1 and 2
Gigging Kits (80s and 90s)
Exotics
Professor Pack (Neil Peart Kits)
With the same pro-quality sound as the TD-20, the new TD-12 drum module provides hundreds of expressive instruments and play-along sequences in a streamlined, affordable package. Many of the sounds in the TD-12, from drums to cymbals, are COSM modeled for the ultimate in expression and realism. The module provides the same large, icon-based LCD as its big brother, and is housed in a road-tough, gun-metal gray chassis with a friendly array of buttons, controls, and mix sliders. A dozen trigger inputs are provided, plus four audio outputs and MIDI I/O.
Sound GeneratorVariable Drum ModelingMaximum Polyphony64 voicesInstruments
Drum Instruments: 560 (172,161 variations)
Backing Instruments: 262
Drum Kits50Drum Kit Chains16 chains (32 steps per chain)Instrument Parameters
V-EDIT (KICK): Shell Depth, Head Type, Head Tuning, Muffling, Snare Buzz
V-EDIT (SNARE): Shell Material, Shell Depth, Head Type, Head Tuning, Muffling, Strainer Adjustment
V-EDIT (TOM): Shell Depth, Head Type, Head Tuning, Muffling, Snare Buzz
V-EDIT (HI-HAT): Cymbal Size, Fixed Hi-Hat, (CYMBAL): Cymbal Size, Sizzle Type, Sustain
EDIT: Pitch, Decay
Ambience ParametersRoom Type, Room Size, Wall Type, Mic Position, Room ShapeMixer ParametersVolume, Pan, Minimum Volume, Output AssignEffect Types
Pad Equalizer (each pad)
Pad Compressor (each pad)
Multi-Effects: 5 types
Reverb (for backing part)
Percussion Sets8Sequencer
User Patterns: 100
Preset Patterns: 150
Parts: 6
Play Type: Oneshot, Loop, Tap
Tempo: 20 – 260
Resolution: 192 ticks per quarter note
Recording Method: Realtime
Maximum Note Storage: approx. 20,000 Notes
Click Sounds: 20
Display
64 x 240 dots (backlit graphic LCD)
7 segments, 3 characters (LED)
Trigger Indicator (LED)
Controllers
Faders: 6
Preview Button: (velocity: 3 steps)
Connectors
Trigger Input Jack x 12
Hi-Hat Control Jack (for VH-12, VH-11 and FD-8)
Master Output Jacks (L/MONO, R): 1/4 inch phone type
Direct Output Jacks (1, 2): 1/4 inch phone type
Headphones Jack: Stereo 1/4 inch phone type
Mix in Jack: Stereo 1/4 inch phone type
MIDI Connectors (IN, OUT/THRU)
