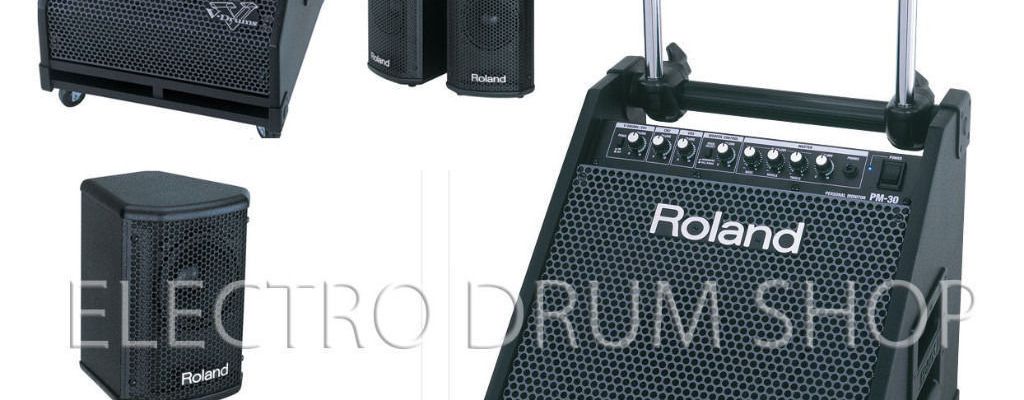

ROLAND PM-30
Personal Monitor Amplifier
Very good condition – package includes, Main Amp, 2 x satellite speakers, mounting posts, clamps, 2x satellite connecting leads and 2x excellent quality long leads to connect gear.
Ready to use and loud enough for rehearsal room or small gig.
Excellent full range system with extra inputs plus a dedicated V Drums input.
A few little cosmetic signs of use, as you’d expect, nothing serious, just cosmetic.
Collection and cash/transfer with ID from Brentford TW8 0JQ (near Kew/Chiswick/Ealing)
Advanced Amplification for V-Drums
Roland’s V-Drums, the world’s leading electronic drum kits, deserve nothing less than superior amplification. Introducing the PM-30, a new top-of-the-line 2.1-channel advanced speaker system. With 200 watts of Class-D power, a high-performance 12 inch woofer with tweeter, a pair of 4 inch satellite speakers, and a proprietary DSP engine, the PM-30 delivers powerful, clear, full-range sound in a package that’s cleanly designed and comfortable to transport.
2.1-channel system optimized for V-Drums
200W (100W + 50W x 2) power, Class-D amplification
Carefully tuned for V-Drums via embedded DSP technology
Subwoofer and Full Range modes for application-specific monitoring performance
Stereo 3-channel mixer, with versatile input / output options
3-band EQ
Satellite speakers can be mounted on PM-30 or V-Drum rack system
Casters and side-panel handles for convenient transportation
Full-Range Sound
With its two satellite speakers and matching 12" woofer enclosure with tweeter, the PM-30 delivers a clear, full-frequency sound. The selectable Full-Range and Subwoofer modes, with accompanying value dial, let you customize the amp’s low-frequency performance, while the built-in 3-band EQ lets you fine-tune the tone from high to low.
Quad Power Pack
Four Class-D power amplifiers are built into the PM-30 system — 100W, 50W, and 50W — for a total of 200 watts of high-performance impact. It’s plenty of power for rehearsals and small- to medium-size venues. Line outputs are provided for tapping into larger systems when needed.
Great for V-Drums
Roland V-Drum owners will appreciate the PM-30’s special V-Drum input, which accepts a single stereo TRS feed from the V-Drums’ headphone output. But that’s only part of the compatibility story. Roland’s engineers carefully optimized the PM-30 for use with V-Drum kits via newly created DSP.
I/O Options
The PM-30 provides a flexible input path with three input channels (both 1/4" and RCA input types are offered) and two sets of outputs (1/4 inch line outputs (stereo) are provided, plus an additional pair of outputs for the satellite speakers).
Transport & Setup
A solid crossbar spans the top of the PM-30’s base unit for convenient carrying; two side handles are provided as well. The two satellite speakers can be clamped
onto the crossbar or mounted onto a drum rack (as pictured).
Rated Power Output
200 W (Main Unit 100 W + Satellite Speaker 50 W x 2)
Nominal Input Level (1 kHz)
INPUT Channel 1 (V-DRUMS): -10 thru +4 dBu, (LINE IN): -20 thru +4 dBu, Channel 2 (LINE IN): -10 thru +4 dBu, Channel 3 (LINE IN): -10 thru +4 dBu
Nominal Output Level
LINE OUT: +4 dBu, SPEAKER OUT: 50 W / 4 ohms min
Speakers
Main Unit: 30 cm (12 inches) x 1 (Woofer), 7.7 cm (3 inches) x 1 (Tweeter), Satellite Speaker: 10 cm (4 inches) x 2 (Full Range)
Controls
PUNCH Switch, Volume Knob, Volume Knob, Volume Knob, Mode Select Switch, Volume Knob, BASS Knob (Equalizer), MIDDLE knob (Equalizer), TREBLE knob (Equalizer), VOLUME Knob, POWER Switch
Indicator
POWER
Connectors
Main Unit: V-DRUMS INPUT Jack (stereo 1/4 inch phone type), LINE IN Jacks (L/MONO, R) (1/4 inch phone type), LINE IN Jacks (L/MONO, R) (1/4 inch phone type), LINE IN Jacks (L/MONO, R) (1/4 inch phone type, RCA phono type), LINE OUT Jacks (L/MONO, R) (1/4 inch phone type), SPEAKER OUT Jacks (L, R) (1/4 inch phone type)
PHONES Jack (stereo 1/4 inch phone type), Satellite Speaker: INPUT Jack (1/4 inch phone type)
Power Supply
AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz)
Power Consumption
63W
Dimensions
Main Unit
451
x 482 (D) x 482 (H) mm
17-13/16 x 19 (D) x 19 (H) inches (Excluding casters)
451 x 482 (D) x 533 (H) mm
17-13/16 x 19 (D) x 21 (H) inches (Including casters)
Satellite Speaker
152 x 158 (D) x 209 (H) mm
6 x 6-1/4 (D) x 8-1/4 (H) inches
Weight
Main Unit
24.3kg / 53 lbs 10 oz (Excluding casters)
25.0 kg / 55 lbs 2 oz (Including casters)
Satellite Speaker
2.2 kg / 4 lbs 14 oz (for each)
Accessory
Mount Bar x 2, Clamp x 2, Speaker Cable (3.5 m) x 2
Size and Weight ( MAIN UNIT )
Width
451 mm
17-13/16 inches
Depth
482 mm
19 inches
Height
533 mm
21 inches
Weight
24.3 kg
53 lbs. 10 oz.
w. caster
Size and Weight ( SATELLITE UNIT )
Width
152 mm
6 inches
Depth
158 mm
6-1/4 inches
Height
209 mm
8-1/4 inches
Weight
2.2 kg
4 lbs. 14 oz
